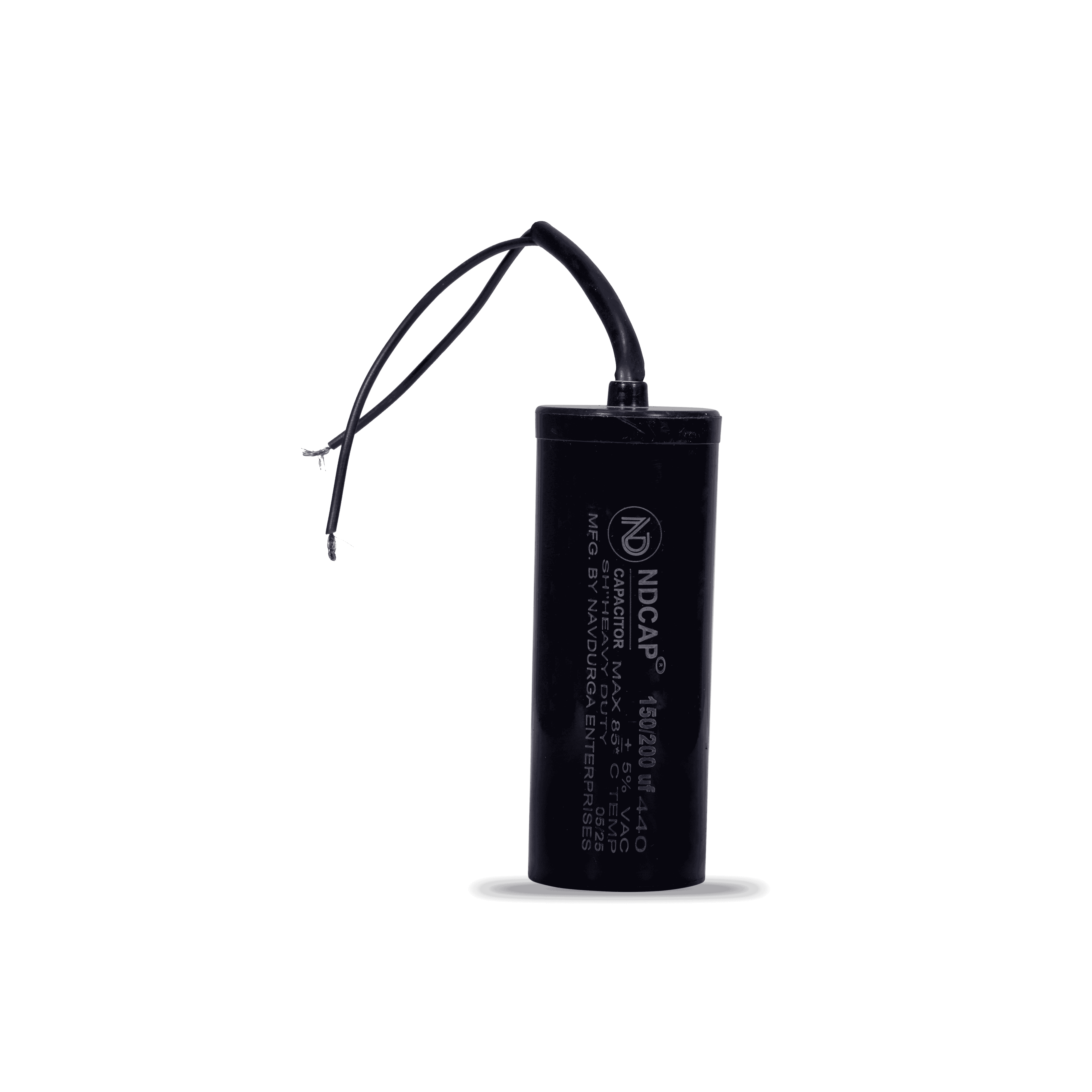

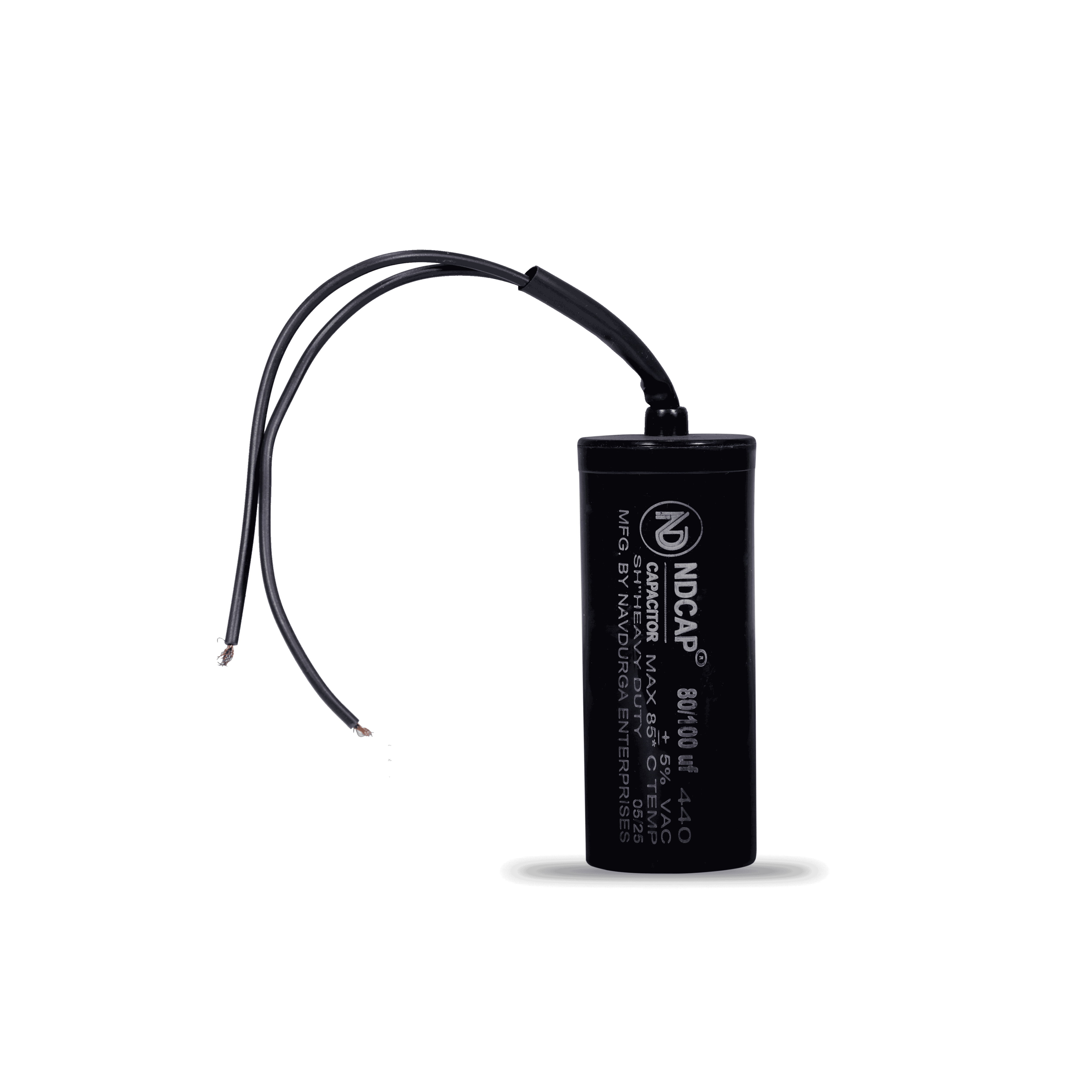

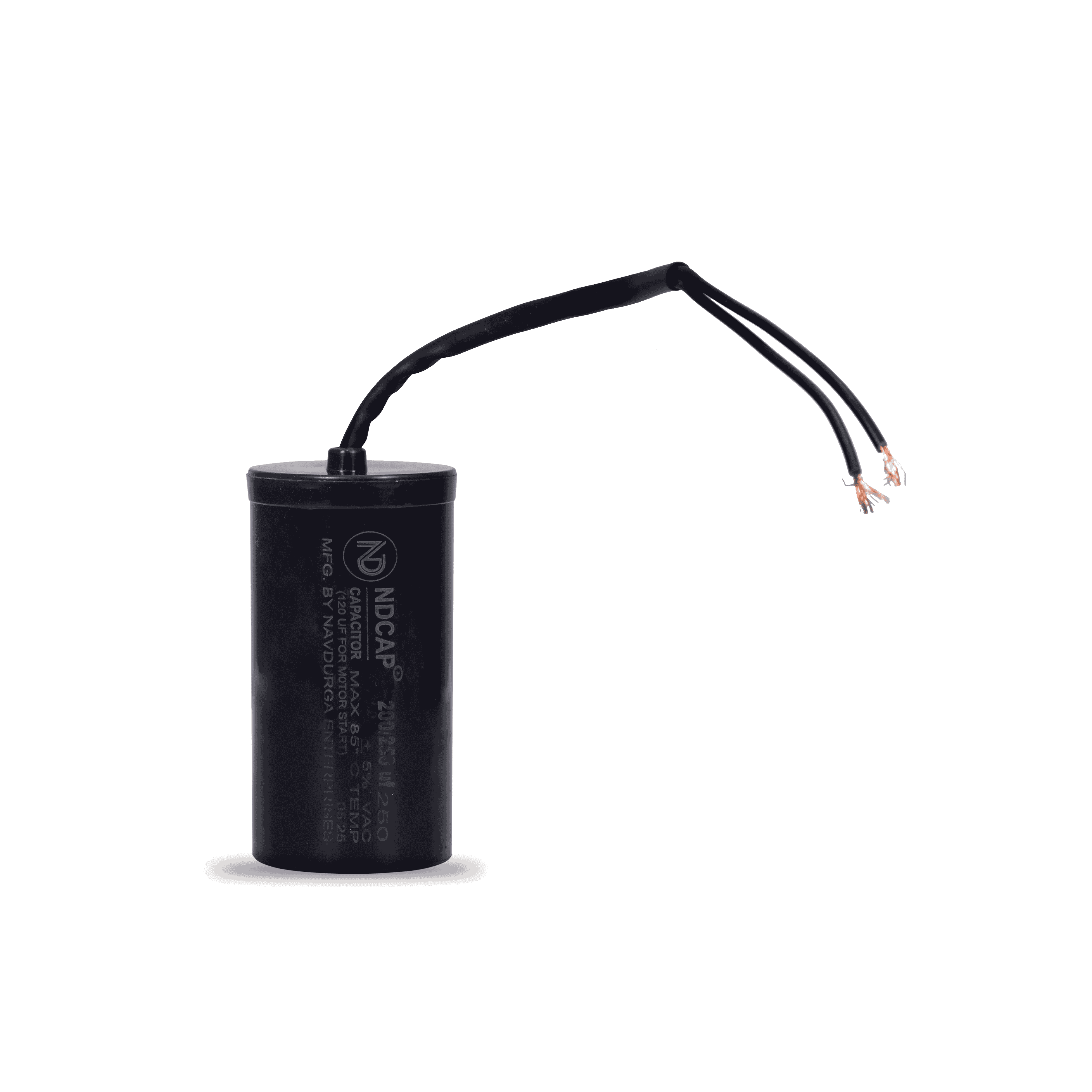

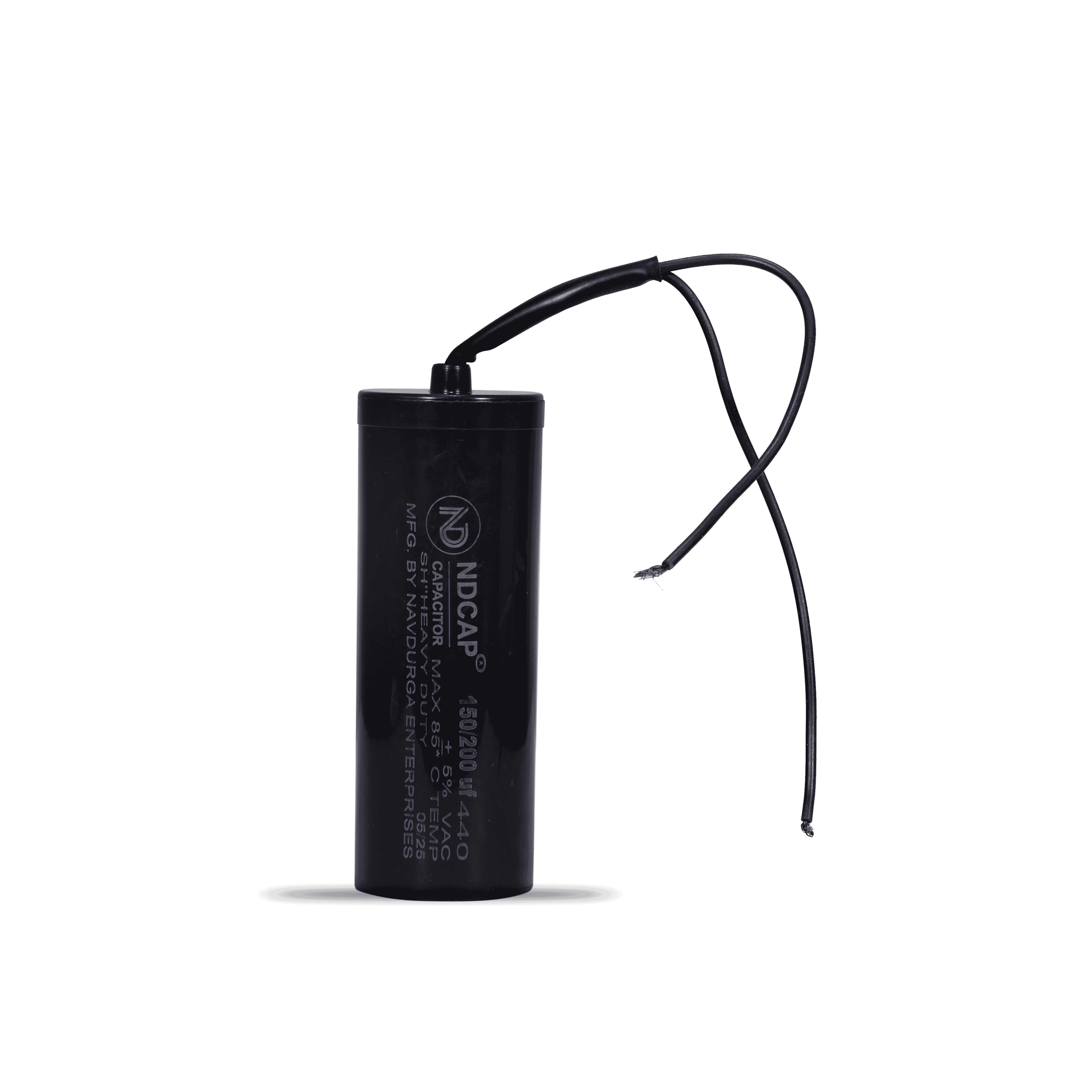

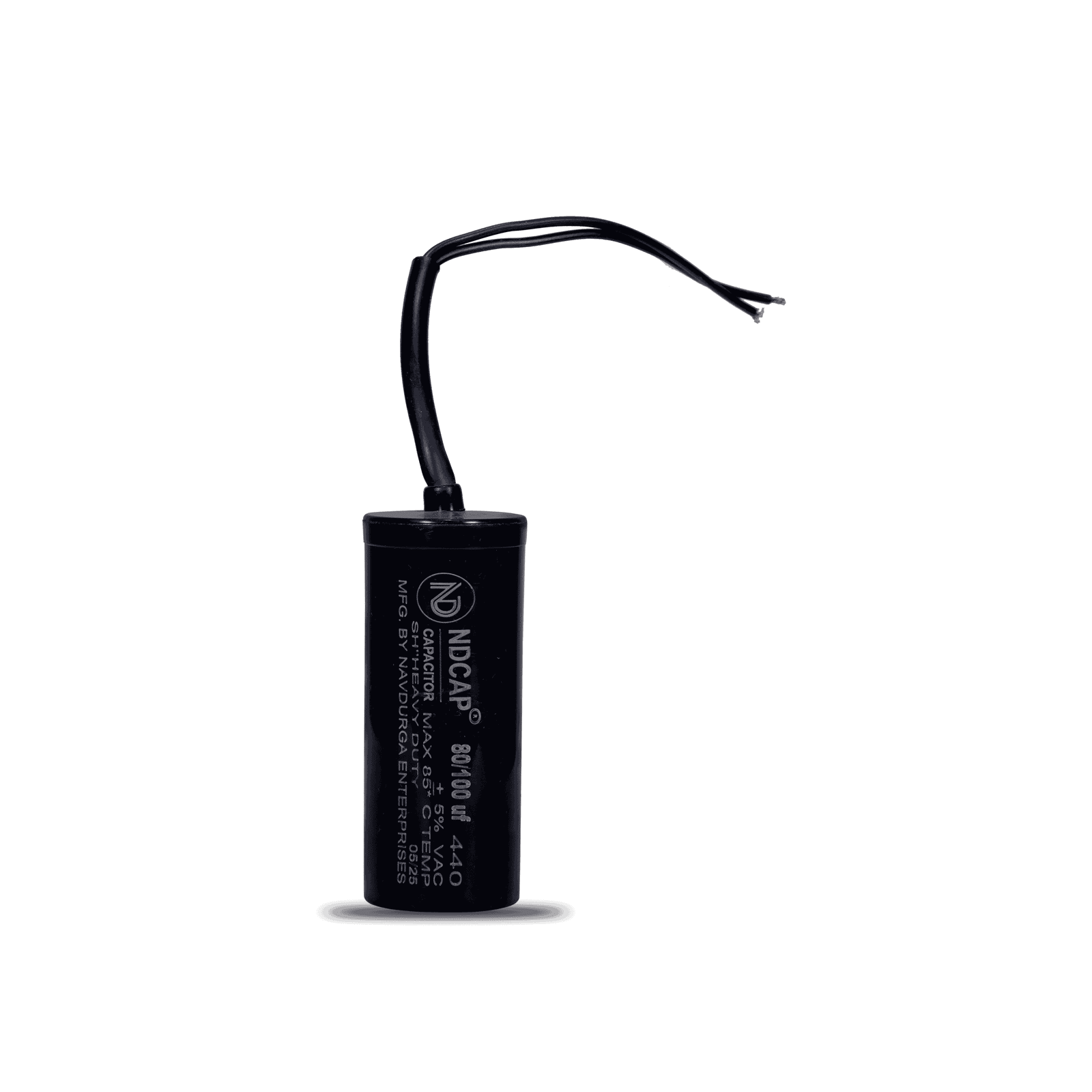

Motor Run Capacitor





Motor Run Capacitor
“ND Motor Run Capacitors are engineered for continuous operation in single-phase induction motors. These are primarily used in applications such as air conditioners, washing machines, pumps, and compressors. The use of metallized polypropylene film allows the capacitor to offer excellent self-healing properties, ensuring a long life and stable performance. The capacitors are built to handle voltage fluctuations, common in Indian electrical systems, and are encased in durable plastic or aluminum cans. Our Motor Run Capacitors deliver constant torque, enhance motor efficiency, and reduce energy consumption. Whether used in household appliances or industrial machinery, ND Capacitors ensure reliability and performance under prolonged usage conditions.”
| Dielectric | Maria Anders |
| Electrode | Zinc Alloy |
| Winding | Non inductive |
| Ref. Standard | ICE/ISS |
| Fan Motor IS 1709 | |
| Motor Run IS 2993 |
ELECTRICAL CHARACTERISTICS
AC Fan & Motor Run Capacitors are manufactured in there most sophisticated plant having stringent quality control standard’s to serve its users with the most cost effective and highest quality capacitor. These capacitors are suitable for FHP Motor, Compressors of Air-Conditioners, Deep – Freezers, Vacuum pumps etc.
| Capacitance Range | 0.68 MFD to 108 MFD |
| Capacitance Tolerance | ±5% |
| Rated Voltage | 250V AC, 440V AC |
| Dissipation Factor | 0.001 Max typical value Dissipation Factor 0.0005 at 1 Khz |
| Test Voltage | 2x rated voltage |
| Storage Temp | -25°C to +85°C |
